| 원래 장소: | 중국 |
| 브랜드 이름: | RESUN |
| 인증: | - |
| 모델 번호: | ES-WM2-10 |
| Attribute | Value |
|---|---|
| Model | ES-WM2-10 |
| Rated Voltage | 51.2V |
| Capacity | 200Ah |
| Energy | 10.24KWh |
| Battery Type | 3.2V 200A H (16 S 1 P) |
| Design Life | More than 10 years |
| Operating Temperature | Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C |
| Dimensions | 495*780*217mm |

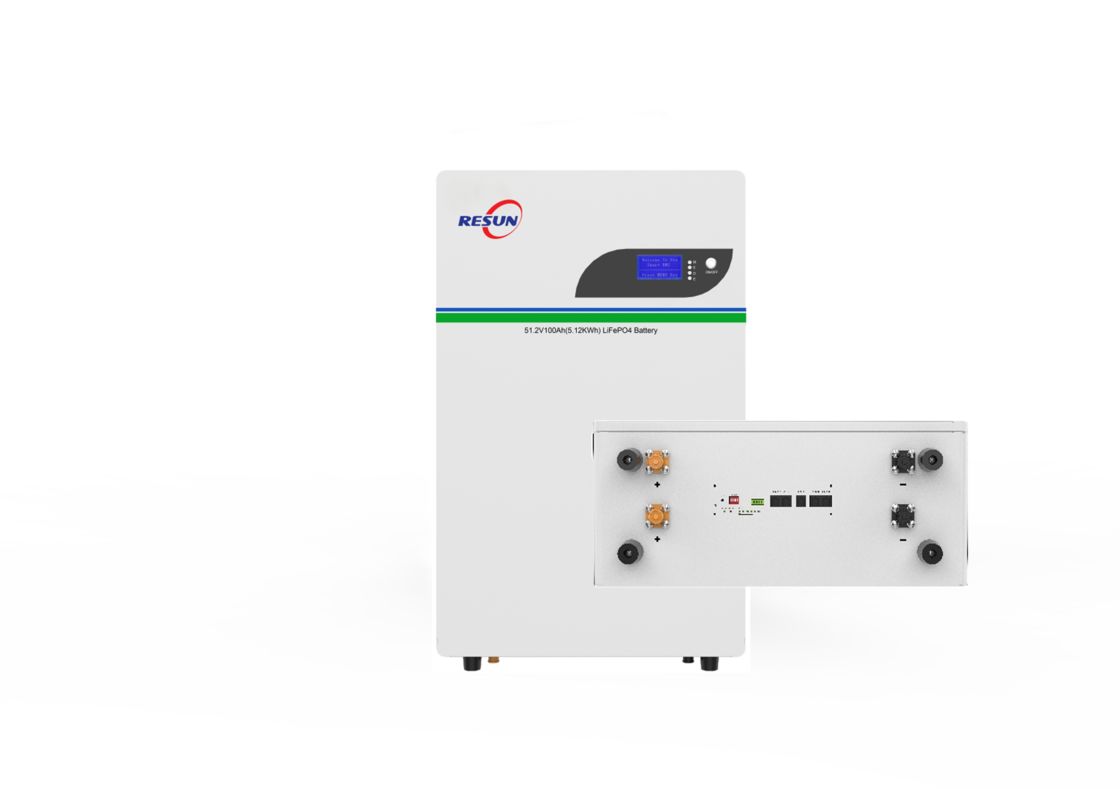

The Long-Cycle BMS Inverter-Compatible Battery Pack features outstanding cycle life. Made with high-quality cells to resist capacity loss, it maintains stable performance after thousands of charge-discharge cycles, suiting long-term energy storage needs.
It comes with a dedicated BMS for all-round protection and smart control. The system real-time monitors voltage, current and temperature, automatically preventing overcharging, over-discharging, short circuits and overheating to boost safety and optimize efficiency.
With standardized electrical interfaces and communication protocols, the battery pack is widely compatible with mainstream on-grid/off-grid inverters. It enables seamless connection and hassle-free deployment, fitting both new setups and existing inverter upgrades.
| Parameter | Value |
|---|---|
| Model | ES-WM2-10 |
| Rated Capacity | 200Ah (10KWH) |
| Rated Voltage | 51.2V |
| Discharge Cut-off Voltage | 43.2V |
| Charge Limiting Voltage | 58.4V |
| Maximum Continuous Discharge Current | 100A |
| Maximum Charge Current | 100A |
| Weight | About 100 kg |
| Parallel Connection | Optional parallel connection (up to 16P) |
| Dimensions (L*W*H) mm | 495*780*217mm |
| Battery Type | 3.2V 100A H (16 S 1 P) |
| Design Life | More than 10 years |
| Cycle Life | > 6000 times(0.2C,@25°℃,80%DOD) |
| Protocol (Optional) | Modbus/RS485 |
| Operating Temperature | Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C |
